SS SIGNATURE 20 OR 30-TON ELECTRIC HYDRAULIC PRESS
SS SIGNATURE 20 OR 30-TON ELECTRIC HYDRAULIC PRESS
US Customers: This press includes a $250 shipping allowance. (Final shipping cost will be determined before your press ships and will vary by location. You will be invoiced for excess shipping charges if freight fees exceed $250.
This allowance has no cash value, and the price of the press will not be adjusted if you pick up locally.
International Customers: Please email us at ss@sandrasirles.com for freight quote BEFORE PURCHASING. sandrasirles.com will pay $250 toward International shipping. The motor we sell is wired to 110v. To ensure you do not damage the motor, YOU are responsible for either ensuring you have 110v power OR for purchasing a converter. sandrasirles.com is not responsible for motor issues due to incompatible power sources.
***WHEN ORDERING BE SURE YOU HAVE A CURRENT PHONE NUMBER ON THE ORDER FORM FOR THE FREIGHT COMPANY.***
You will find these videos on my YouTube channel.

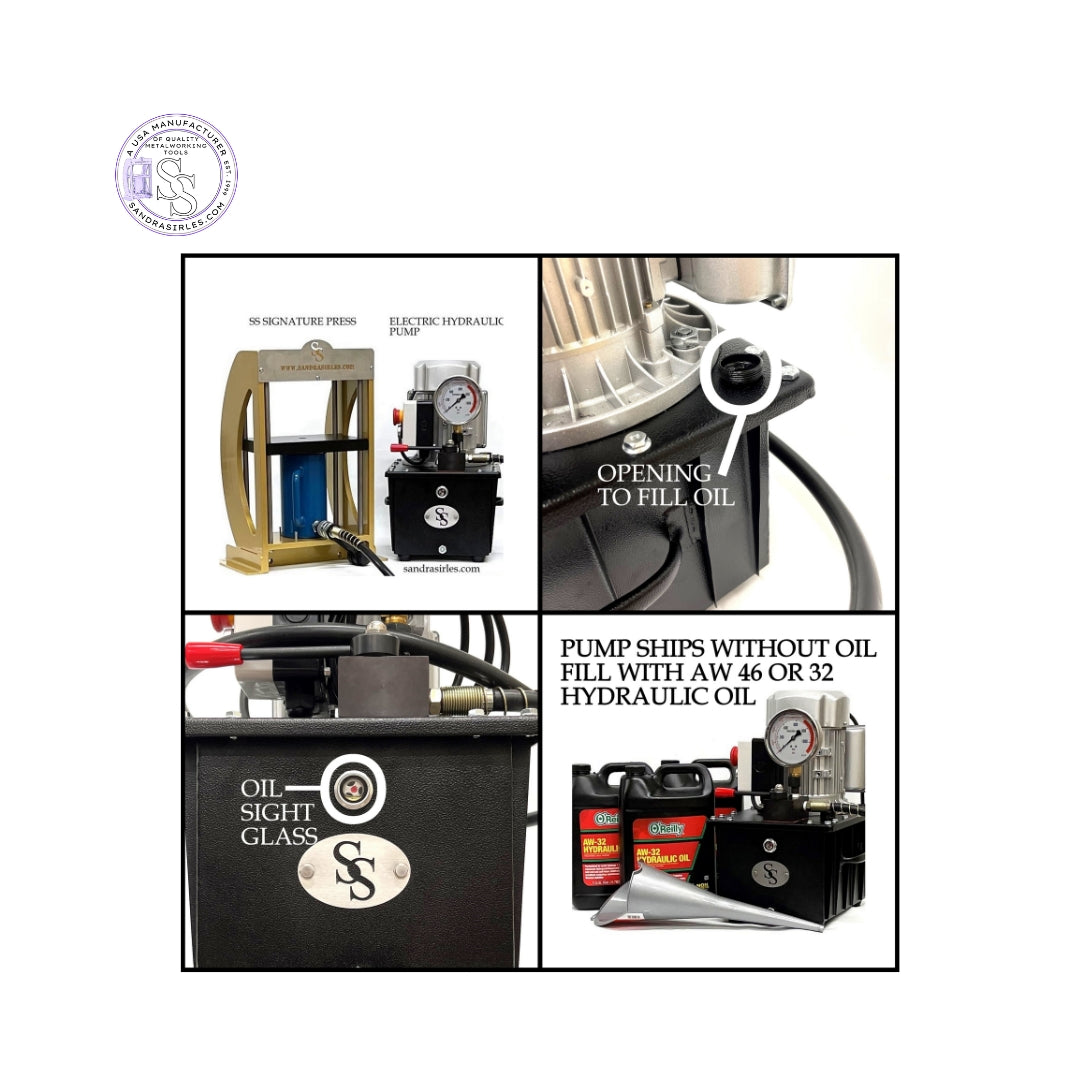

INTRODUCTION AND VIDEO 1: FILLING ELECTRIC HYDRAULIC PUMP - YouTube
VIDEO 2 SETUP OF ELECTRIC HYDRAULIC PRESS - YouTube
PLEASE
PICK A COLOR WITH THE PULL-DOWN MENU:

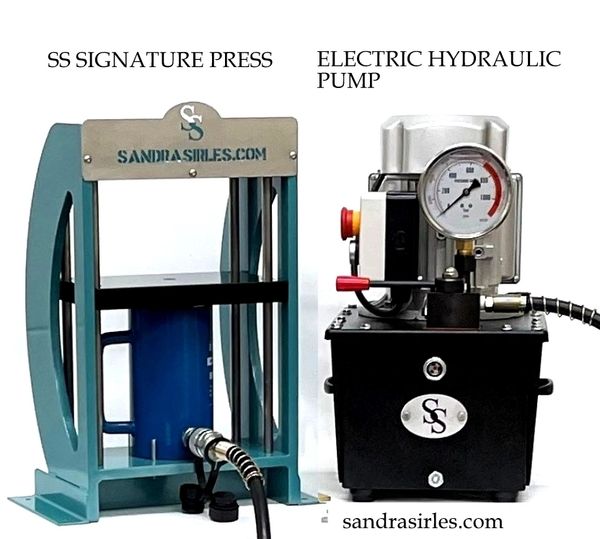

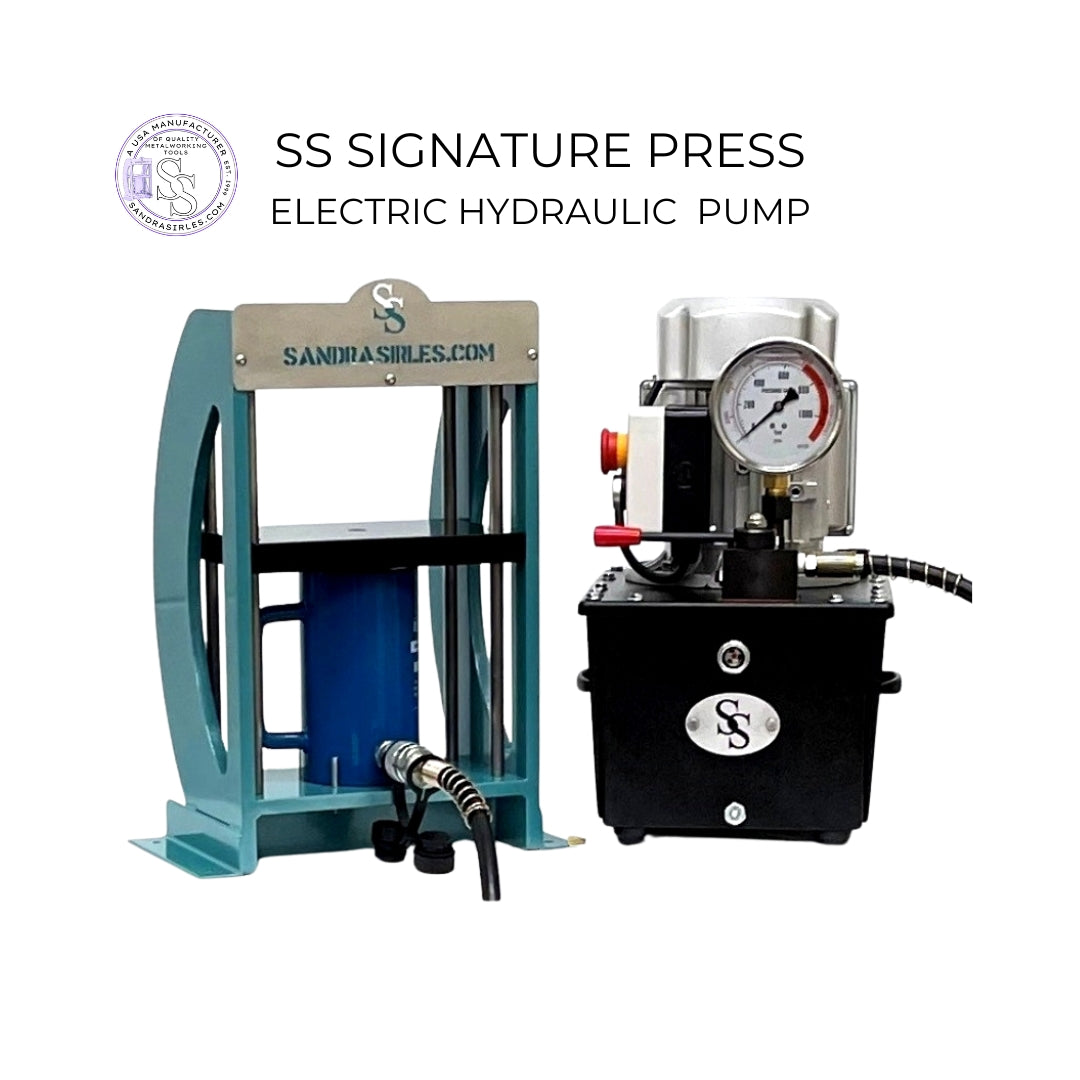

Press includes a 20 or 30-ton 4” stroke hydraulic cylinder and an Electric hydraulic pump/motor. Press dimensions: 19” high x 10-3/4” wide (13-1/4” w/feet) x 8-1/2” deep. Lower platen working area: 6” deep x 8-1/4” wide. Total weight Press: 75 lbs., 20 or 30-ton cylinder 24-1/2 lbs. Electric hydraulic pump/motor dimensions: 18” high x 10” wide x 13” deep 58 lbs.

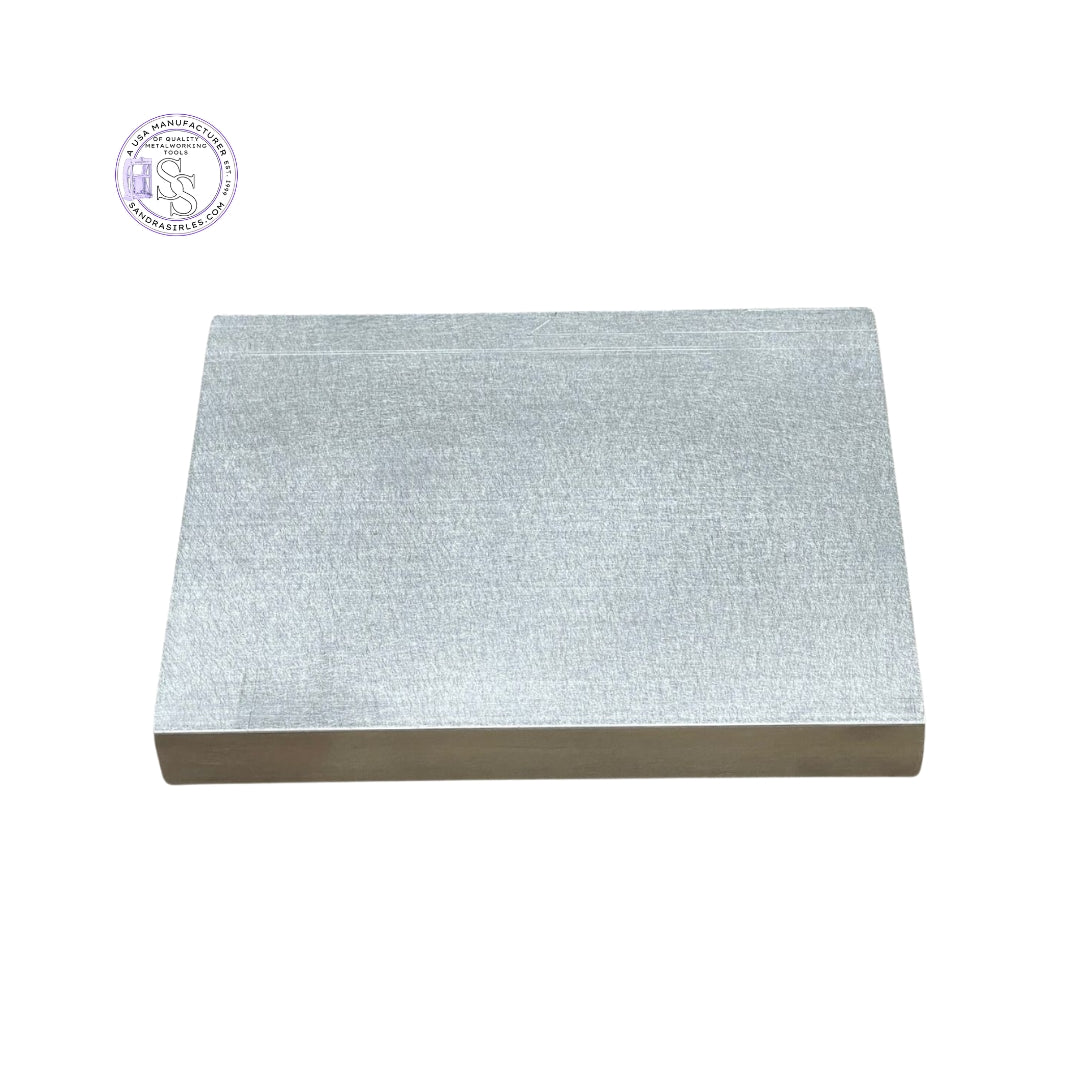

** YOU WILL NEED (3) 6” X 8” ALUMINUM SPACERS** Aluminum Spacers are needed in your hydraulic press to manage and shorten the distance and effort needed to extend the press cylinder ram. Your top and bottom platens should never touch – without spacers between your platens your cylinder ram just might fail.
All press orders include 15% OFF pancake dies for 3 months. After the press is paid in full, you will receive a code for your 3-month discount. If you want pancake dies to ship w/your press, place a separate order with your discount for the pancake dies right after you purchase the press.
DESCRIPTION: Electric Hydraulic Press
The sandrasirles.com Electric Hydraulic Press has been designed, tested, and built to safely and efficiently be used for metal forming needs of jewelers, metalsmiths, and crafters across the board. sandrasirles.com presses are built from 1/2” steel plate construction, with certified welds on the entire press. The fully welded construction by certified welders makes our press extremely strong, durable, safe, and rigid with no flexing. The press design is compact and sturdy. Our press allows you to emboss, texture, bend, form, shape and cut metal.
The upper platen is welded in place and is compatible with magnetic accessories. When the accessories are not in use, there is a convenient storage space on top of the press.
The space between platens is approx. 4-7/8"
1. Press can be bolted to a workstation or strong table for safe use: Pre-drilled, welded mounting feet so you can bolt the press directly to a strong table or workstation. Not for use on a portable tool chest or any other light table. Please use 1/4-20 bolts for mounting feet to workstation. The 4 lag bolts that Secure the press to the pallet. (Helpful hint: you can reuse the four lag bolts to Secure your press to your strong wooden worktable.
Our frame has a lifetime warranty. Repaired or replaced at no cost.
Our frame and platens are powder-coated, with a stainless-steel logo plate.
Attributes:
· Affordable
· Compact
· Pre-drilled mounting feet
· Ease of use
· Many accessories and more coming soon
· Works with other press manufacturer's accessories
· Lifetime Warranty on press frame
· Space between platens: approx. 4-7/8”
· 6” deep x 8-1/4” wide lower platen
· Press dimensions: 19” high x 10-3/4” wide (13-1/4” w/fee) x 8-1/2” deep.
· Electric hydraulic pump dimensions: 18” high x 10” wide x 13” deep
SHIPPED: FREIGHT DELIVERY: . Freight charge is between $230 - $575 in the continental US. Truck will deliver to your home. Product is shipped on a 24” x 28” wooden pallet.
UNPACKING FRAME:
DO NOT PICK YOUR PRESS UP BY YOURSELF (2 PERSON LIFTING)
2 Unwrap and unscrew your press from the shipping pallet.
3. Put press on a strong table.
4. Enjoy!!!
