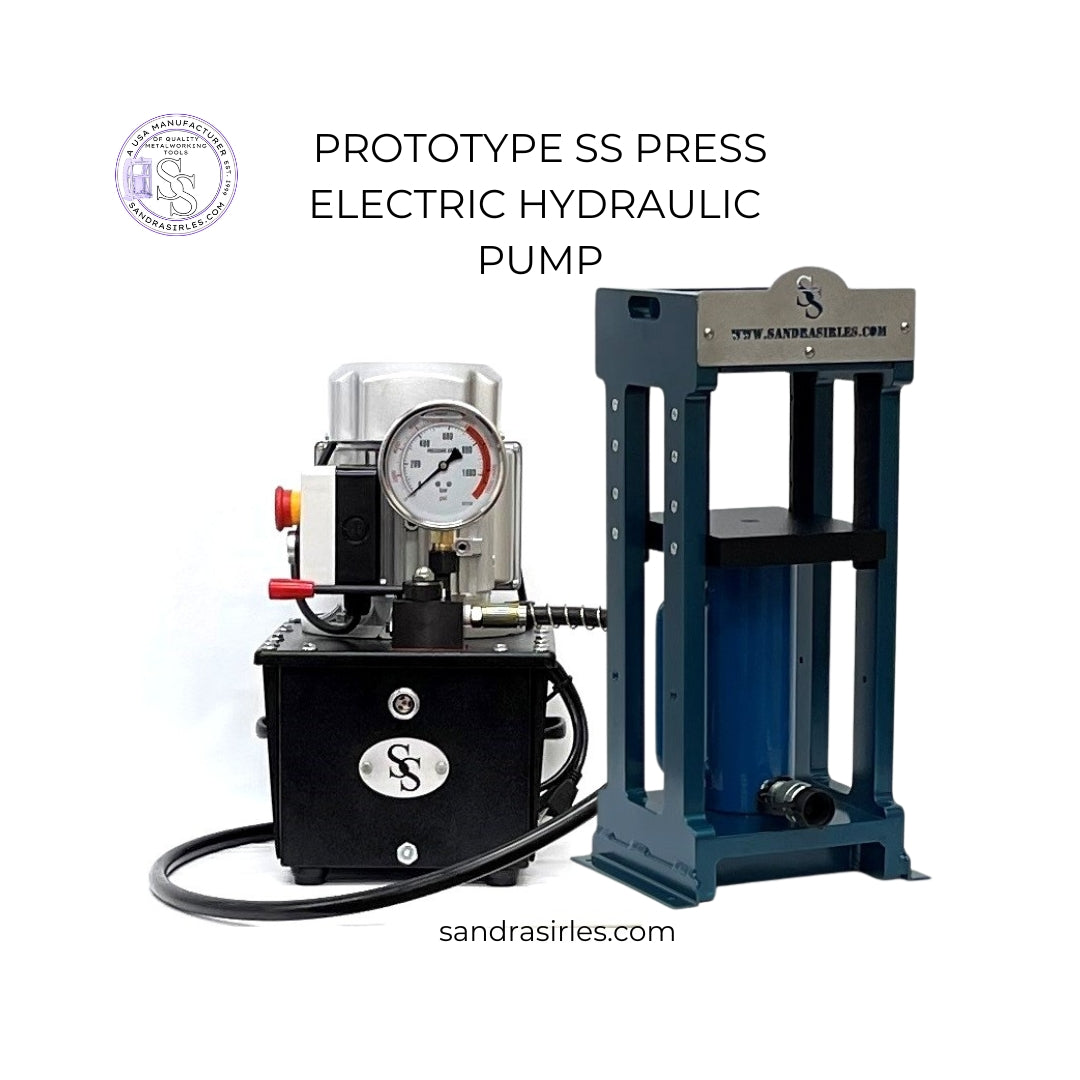

SS PROTOTYPE 20-TON ELECTRIC HYDRAULIC PRESS (ONLY 1 AVAILABLE)

DESCRIPTION

SS PROTOTYPE 20-TON ELECTRIC HYDRAULIC PRESS (ONLY 1 AVAILABLE)

NO INTERNATIONAL SHIPPING WITH THIS PRESS

US Customers: This press includes a $150 shipping allowance. (Final shipping cost will be determined before your press ships and will vary by location. You will be invoiced for excess shipping charges if freight fees exceed $150.

This allowance has no cash value, and the price of the press will not be adjusted if you pick up locally.

***WHEN ORDERING BE SURE YOU HAVE A CURRENT PHONE NUMBER ON THE ORDER FORM FOR THE FREIGHT COMPANY. ***

All press orders include 15% OFF pancake dies for 3 months. After the press is paid in full, you will receive a code for your 3-month discount. If you want pancake dies to ship w/your press, place a separate order with your discount for the pancake dies right after you purchase the press.

COLOR: OCEAN

** YOU WILL NEED (3) 5” X 8” ALUMINUM SPACERS**

Aluminum Spacers are needed in your hydraulic press to manage and shorten the distance and effort needed to extend the press cylinder ram. Your top and bottom platens should never touch – without spacers between your platens your cylinder ram just might fail.

DESCRIPTION:  Electric Hydraulic Press

Press includes a 20-ton 6” stroke hydraulic cylinder and an Electric hydraulic pump/motor.

The sandrasirles.com Electric Hydraulic Press has been designed, tested, and built to safely and efficiently be used for metal forming needs of jewelers, metalsmiths, and crafters across the board. This press is built from aluminum/steel plate The fully welded construction by certified welders makes our press extremely strong, durable, safe, and rigid with no flexing.  The press design is compact and sturdy. Our press allows you to emboss, texture, bend, form, shape and cut metal.

The space between platens is approx. 4-1/8"

1.   Press can be bolted to a workstation or strong table for safe use: Pre-drilled, welded mounting feet so you can bolt the press directly to a strong table or workstation. Not for use on a portable tool chest or any other light table. Please use 1/4-20 bolts for mounting feet to workstation. The lag bolts that Secure the press to the pallet. (Helpful hint: you can reuse the lag bolts to Secure your press to your strong wooden worktable.

Our frame has a lifetime warranty. Repaired or replaced at no cost.

Our frame and platens are powder-coated, with a stainless-steel logo plate.

SPECIFICATIONS:

Safe

Affordable

Compact

Pre-drilled mounting feet

Ease of use

Press Dimensions: 20” high x 10” wide (w/feet) x 8-1/2” deep.

Working Area: 4-1/8" high x 5-1/2" wide x 8" deep

Upper and Lower Platen Measurements: 6" x 8-1/4"

Electric Hydraulic Pump Dimensions: 18” high x 10” wide x 13” deep

6000 psi gauge included

Cylinder: 20-ton 6" stroke

NOTE: THE PUMP DOES NOT SHIP WITH HYDRAULIC OIL. YOU WILL NEED 2.11 GALLON OF AW-32 or 46 HYDRAULIC OIL. FILL BEFORE USE

PRESS IS READY TO SHIP.
