SS PORTABLE HYDRAULIC JEWELRY PRESS 20-TON CYLINDER AND A POWER PUMP W/GAUGE
SS PORTABLE HYDRAULIC JEWELRY PRESS 20-TON CYLINDER AND A POWER PUMP W/GAUGE
US Customers: This press includes a $150 shipping allowance. (Final shipping cost will be determined before your press ships and will vary by location. You will be invoiced for excess shipping charges if fees exceed $150.This allowance has no cash value, and the price of the press will not be adjusted if you pick up locally.
International Customers: Please email us at ss@sandrasirles.com for Shipping quote BEFORE PURCHASING. sandrasirles.com will pay $150 toward International shipping.
***WHEN ORDERING BE SURE YOU HAVE A CURRENT PHONE NUMBER ON THE ORDER FORM FOR SHIPPING.***
PLEASE PICK A COLOR WITH THE PULL-DOWN MENU:
The SS Portable Jewelry Hydraulic Press is our newest, most compact, and most economical 20-ton jewelry hydraulic press. It is Mighty, Compact, Portable, Beautiful.
Full Size Capabilities! Up to 6000 psi DO NOT EXCEED.
Our portable press is an excellent choice for smaller studios, instructors who are on the move and need a mighty performing portable press, that will travel easily.

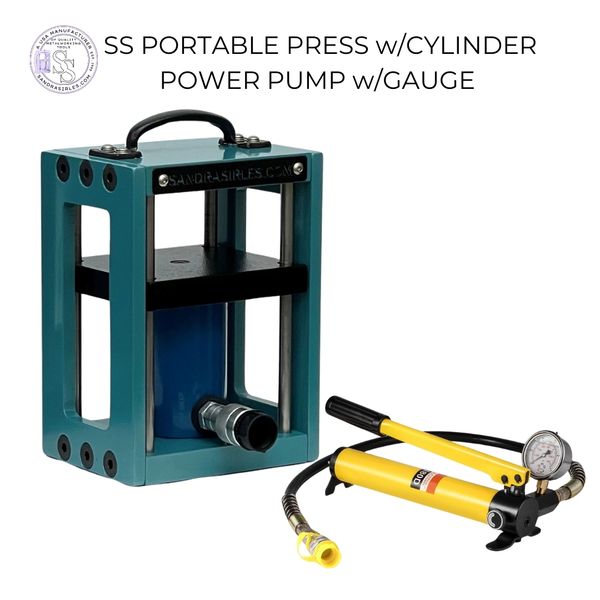

Press includes a 20-ton 2” stroke hydraulic cylinder and a Hydraulic Hand Power Pump w/Gauge. Outer dimensions: 13-1/4” high x 6” wide x 6” deep. Lower platen working area: 6” deep x 5” wide. Total weight Press/20-ton Cylinder: 60 lbs. Hydraulic Hand Power Pump 12 lbs.
** YOU WILL NEED (3) 6” X 5” or (3) 8” x 5” ALUMINUM SPACERS** Aluminum Spacers are needed in your hydraulic press to manage and shorten the distance and effort needed to extend the press cylinder ram. Your top and bottom platens should never touch – without spacers between your platens your cylinder ram just might fail.
CAN be upgraded to a SS electric pump at a later date.
All press orders include 15% OFF pancake dies for 3 months. After the press is paid in full, you will receive a code for your 3-month discount. If you want pancake dies to ship w/your press, place a separate order with your discount for the pancake dies right after you purchase the press and receive your code.
PRESSES ARE MADE TO ORDER PLEASE ALLOW UP TO 4 WEEKS TO SHIP.
DESCRIPTION: SS PORTABLE Hydraulic Press- W/20-TON CYLINDER AND POWER PUMP W/GAUGE
The sandrasirles.com Portable Press has been designed, tested, and built to safely and efficiently be used for metal forming needs of jewelers, metal smiths and crafters across the board. sandrasirles.com SS Portable Presses are built from Steel plate construction, making our press extremely strong, durable, safe, and rigid with no flexing. The press design is compact and sturdy, made to be portable. Our press allows you to emboss, texture, bend, form, shape and cut metal.
Maximum operating pressure of 6,000 psi
The space between platens is approx. 3-3/4"
Our frame has a lifetime warranty. Repaired or replaced at no cost.
Our frame, logo and platens are powder-coated.
Attributes:
· Height: 13-3/4"
· Width: 6"
· Depth: 6"
· Height and Width of Working Area: 3-3/4" (H) 5” (W) x 6" (D)
· Weight of Press Frame with Cylinder: 60 lbs.
· Weight of Hand Pump: 12 lbs.
· Cylinder: 2" stroke (you WILL need spacers, x 3 qty)
· We offer 2 Sizes of spacers for this Portable Press: 6” x 5” and 8” x 5” Insert the 8” x 5” lengthwise into the press, rather than horizontally.
· Your choice of frame powder coating colors. Many to choose from.
· Cylinder and pump colors may vary. The handle/pump/cylinder, etc. may be different than what appears in photos. You cannot choose a color or design.
· Both platens are bolted to the cylinder.
· Lifetime warranty on press frame, 2-year warranty on the cylinder and parts
· CAN be upgraded to electric at a later date.
· If you already own an electric press from sandrasirles.com, you will be able to attach that pump to this press. (DO NOT EXCEED 6,000 PSI)
HYDRAULIC HAND POWER PUMP.
Maximum operating pressure of 6,000 pounds per square inch (psi)
