PANCAKE DIE DC-15 ROUND/ SUN DESIGN

DESCRIPTION

DC-15 ROUND/ SUN DESIGN

PANCAKE DIES WITH A DESIGN CUTOUT: Offer both a Pancake die and a Silhouette die in one die.

Pancake dies are a great way to cut metal without endless sawing. Silhouette dies are a great way to emboss metal.   IN ONE DIE!

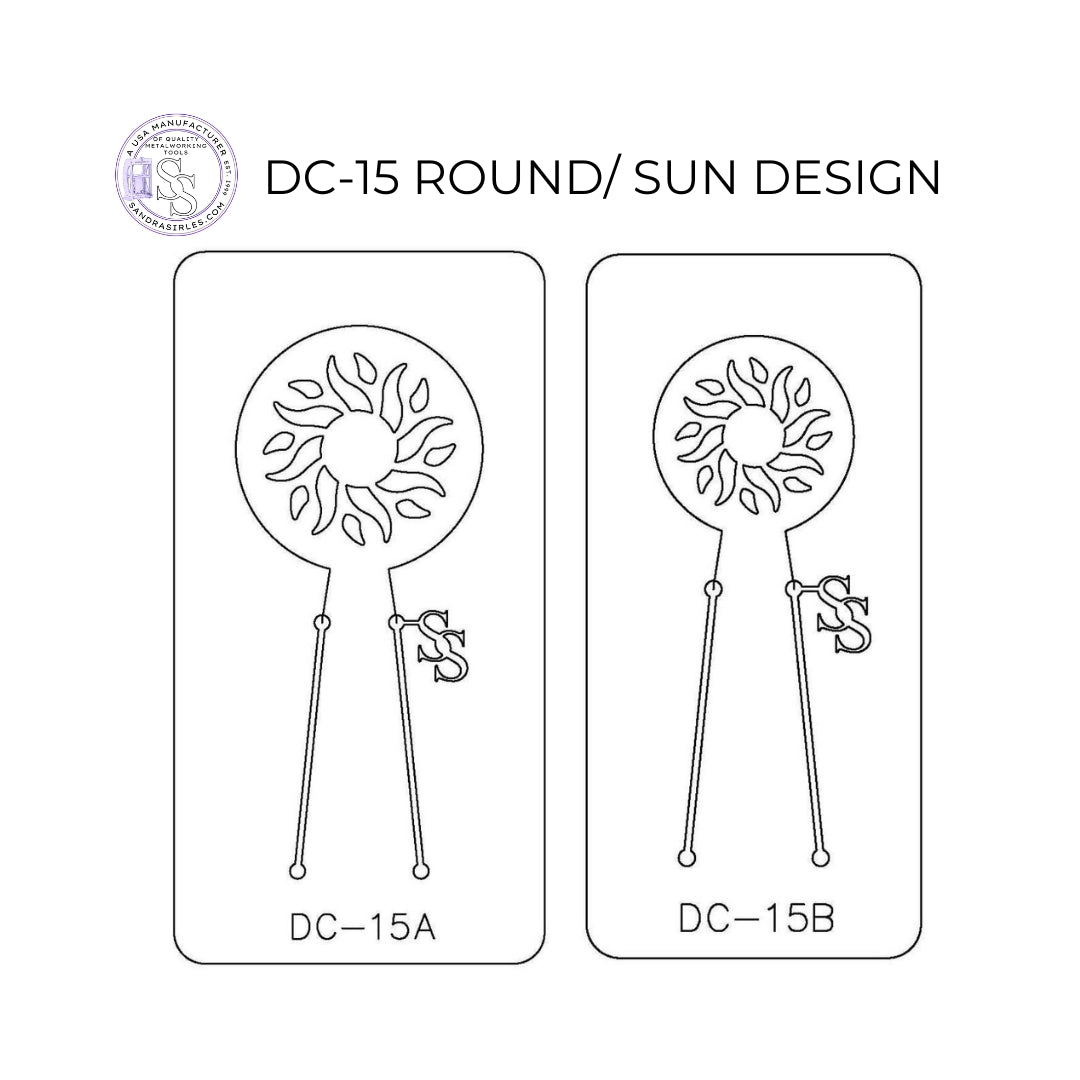

DC-15A   LG. ROUND/ SUN DESIGN- 2" H x 2" W   Die 5-3/4" H X 3" W

DC-15B   MED. ROUND/ SUN DESIGN- 1-1/2" H x 1-1/2" W   Die 5-1/4" H x 2-1/2" W

Pancake dies with a design cutout are used with a soft durometer RUBBER sheet also sold on the website.

SUPER EASY TO USE IN A PRESS;

Use just like a regular pancake die. Once you hear the pop of the cut… go a little further with the pressure so the metal will receive the design.

If you do not have enough pressure, the design will not transfer. If you go too far with the pressure, you will blow out the design, so experiment a little to get the feel.

Larger design spaces will need less pressure.

Smaller design spaces will need a little more pressure.

Thinner metal will need less pressure.

Thicker metal will need more presser.

Do not over think the process. Have fun!

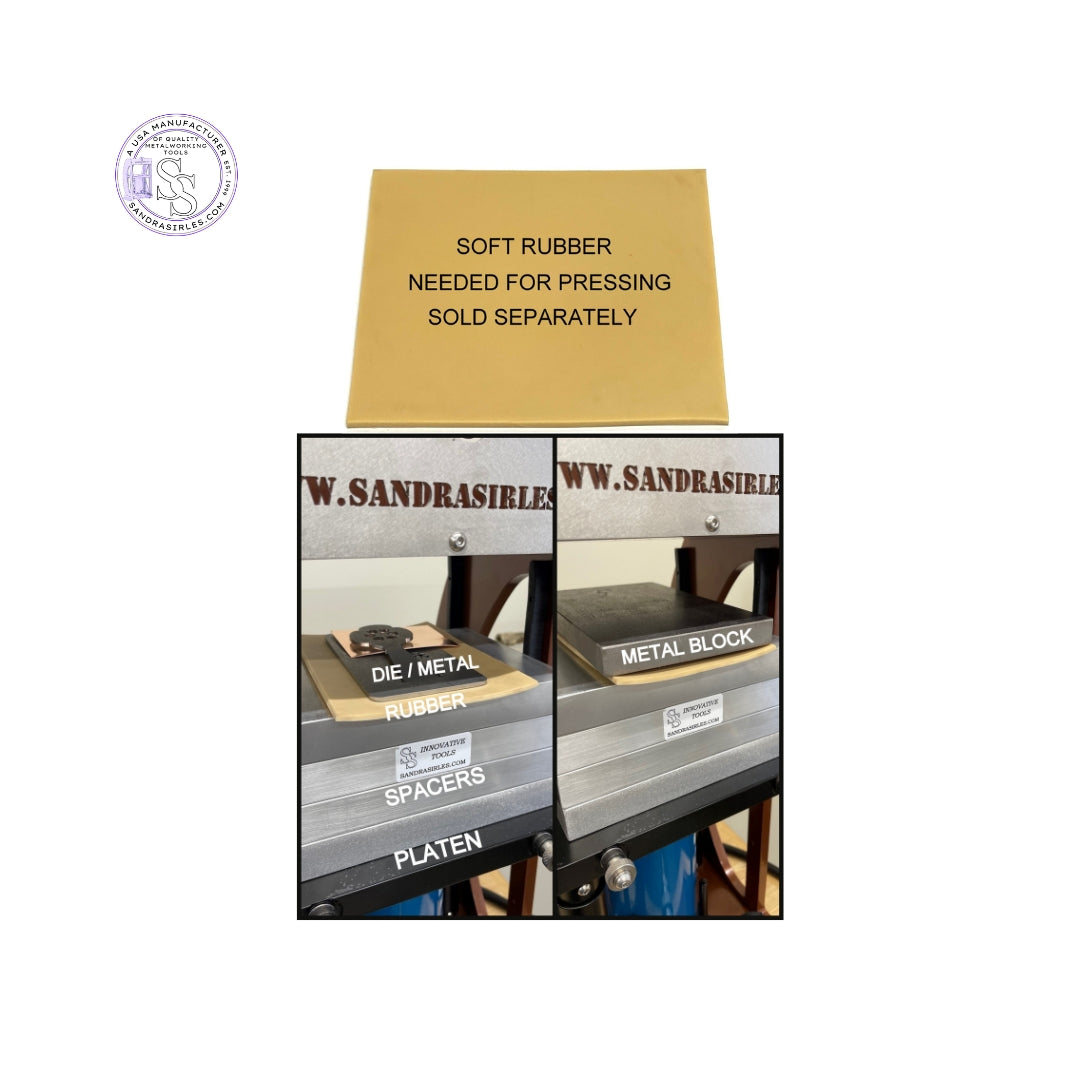

Layering order for pressing

Platen

Spacers

Rubber

Pancake die with metal inserted

Metal block, cover the entire pancake die this will help the pancake die from bowing.

Dies are made to order; most orders ship within 2 1/2 weeks. BUT mishaps happen so please allow up to 4 weeks for fabrication before panic sets in.

RUBBER SHEET FOR PANCAKE DIES W/A DESIGN CUTOUT: (Sold Separately).
