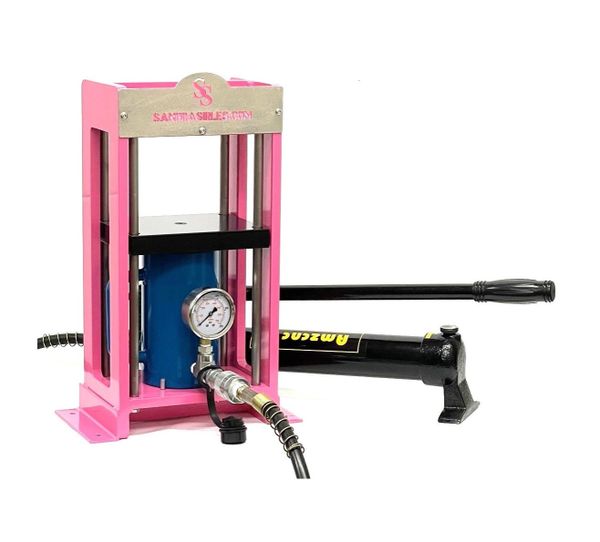

SS PORTABLE HYDRAULIC PRESS - 30-TON CYLINDER W/GAUGE AND A PORTA PUMP

SS PORTABLE HYDRAULIC PRESS - 30-TON CYLINDER W/GAUGE AND A PORTA PUMP     SHIPS FREE IN THE CONTINENTAL USA.

This press includes a Cylinder w/Gauge and Porta Pump. Outer dimensions: 18-5/8” High x 8-3/4” wide 11-3/4” (w/feet) x 6-1/2” deep. Lower platen working area: 6” wide x 6” deep.

Weight Press: 53 lbs., 30-ton Cylinder 24 lbs.  Total Weight = 77lbs.   Porta Pump 25 lbs.

** YOU WILL NEED (3) 6” X 6” OR 8” X 6” ALUMINUM SPACERS**   Aluminum Spacers are needed in your hydraulic press to manage and shorten the distance and effort needed to extend the press cylinder ram. Your top and bottom platens should never touch – without spacers between your platens your cylinder ram just might fail.

PRESS SHIPS FREE IN THE CONTINENTAL US. And includes 15% OFF pancake dies for 3 months. After the press is paid in full, you will receive a code for your 3-month discount. If you want pancake dies to ship w/your press, place a separate order with your discount for the pancake dies right after you purchase the press.

PRESSES ARE MADE TO ORDER PLEASE ALLOW UP TO 4 WEEKS TO SHIP.

DESCRIPTION:   SS PORTABLE Hydraulic Press- W/30-TON CYLINDER W/GAUGE AND PORTA PUMP

The sandrasirles.com Press has been designed, tested, and built to safely and efficiently be used for metal forming needs of jewelers, metalsmiths and crafters across the board. sandrasirles.com SS Presses are built from Steel plate construction, with certified welds on the entire press. The fully welded construction by certified welders makes our press extremely strong, durable, safe and rigid with no flexing.  The press design is compact and sturdy made to be portable. Our press allows you to emboss, texture, bend, form, shape and cut metal.

The upper platen is welded in place and is compatible with magnetic accessories. When the accessories are not in use, there is a convenient storage space on top of the press.

The space between platens is approx. 4-7/8"

1.  Press must be bolted to a workstation or table for safe use: pre-drilled, welded mounting feet so you can bolt the press directly to a table or workstation. Not for use on a portable tool chest or any other light table. Please use 1/4-20 bolts for mounting feet to workstation.  (4 lag bolts included with your press)

Our frame has a lifetime warranty. Repaired or replaced at no cost.

Our frame and platens are powder-coated, with a stainless-steel logo plate.

Attributes:

·         - Safe

·         - Affordable

·         - Compact

.         - Portable

·         - Pre-drilled mounting feet

·         - Ease of use

·         - Many accessories coming soon

·         - Works with other press manufacturer's accessories

·         - Lifetime Warranty on press frame

·         - 6” deep x 6” wide lower platen

·         - Outer dimensions: 18-5/8” High x 8-3/4” wide x 6-1/2” deep.

·                 - Frame is made to allow for transition to an electric hydraulic system.

SHIPPING: SHIPS FREE IN THE CONTINENTAL USA.   sandrasirles.com will cover the ship charge in the continental USA.

10000 PSI HYDRAULIC PORTA PUMP 2 SPEED POWER PACK HYDRAULIC LIFTING PUMP

Maximum operating pressure of 10,000 pounds per square inch (psi) Two-speed Plunger Improves Pump Efficiency By 70%

Advances and releases design for applications with a constantly applied load Pressure relief valve (Oil return knob) helps prevent pump overload, switch (venting nut) on the tail of pump.

Oil capacity: 700cc, 2M high pressure hose, oil pipe coupling with PT3/8 thread

Manual Hydraulic Pump is durable, smooth surface and good sealing performance.

High-pressure hydraulic hand pump for 5-ton to 200-ton hydraulic ram cylinders.

Product Description

1. Pump is designed in two stages of high and low speed for quick oil output. Two stages speed action for rapid ram advantage.
2. Manual operation style, oil pipe fitted with quick coupling.
3. Pressure could be stopped in middle. Inner designed over pressure safety unit protect hydraulic valve.
